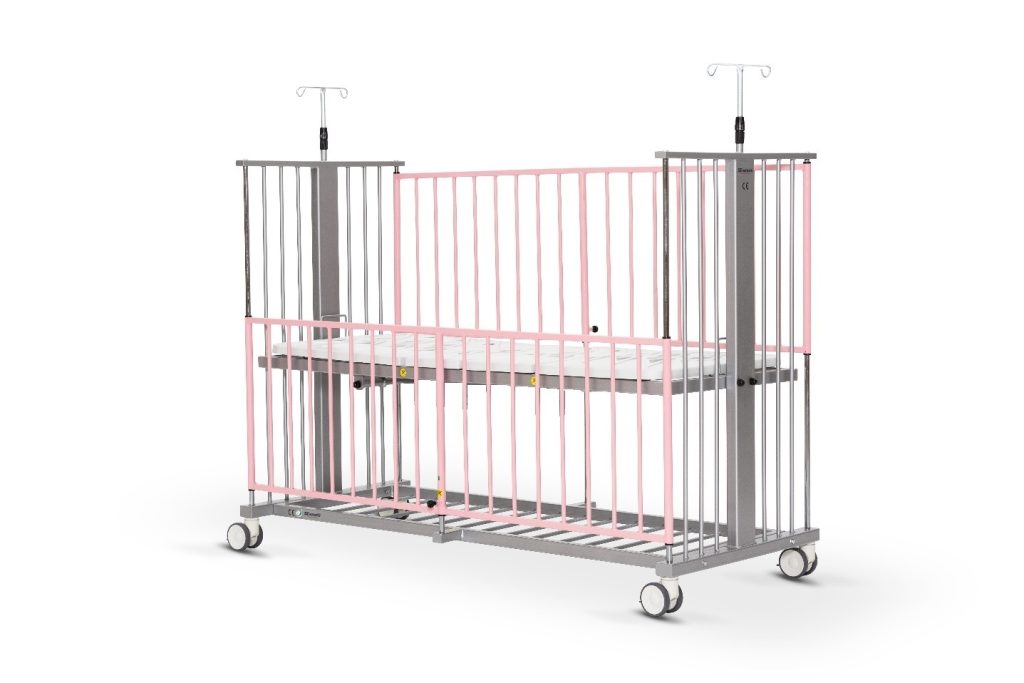

PDB 1200 PRODUCT SPECIFICATIONS
Epoxy powder painted steel struction and corrosion resistant
Manually performs the following positions:
Trendelenburg, Reverse Trendelenburg, Fowler, Leg elevation.
Lateral handrails with adjustable fastening system, minimum of three positions or heights.
Distance between rods no greater than 6 cm
Telescopic lectern system
Coupling point for lectern, Height from the floor to the top of the mattress minimum of 75 cm.
Sleeping area usable dimensions 75cm width x 139 cm length ±15 cm
Foam mattress with a cover of waterproof, anti-shell (anti-tear) material, tolerant to hospital detergents hospital-grade detergent tolerant, fire retardant and without aerators, not less than 10 cm thick.
Mattress has handles on both sides for turning it over. Mattress dimension is compatible with the sleeping area
Four (4) thermoplastic or conductive nylon wheels, with ball bearings of 7.5 cm in diameter with two brakes
EN 60601-2-52:2010
| Feature | Specification |
|---|---|
| External Dimensions | 139 x 75 cm ±15 cm |
| Height Range (Fixed) | 75 cm |
| Side Rails Height | 75 cm |
| Castor Diameter | 12,5 cm |
| Safe Working Load | 170 kg |
