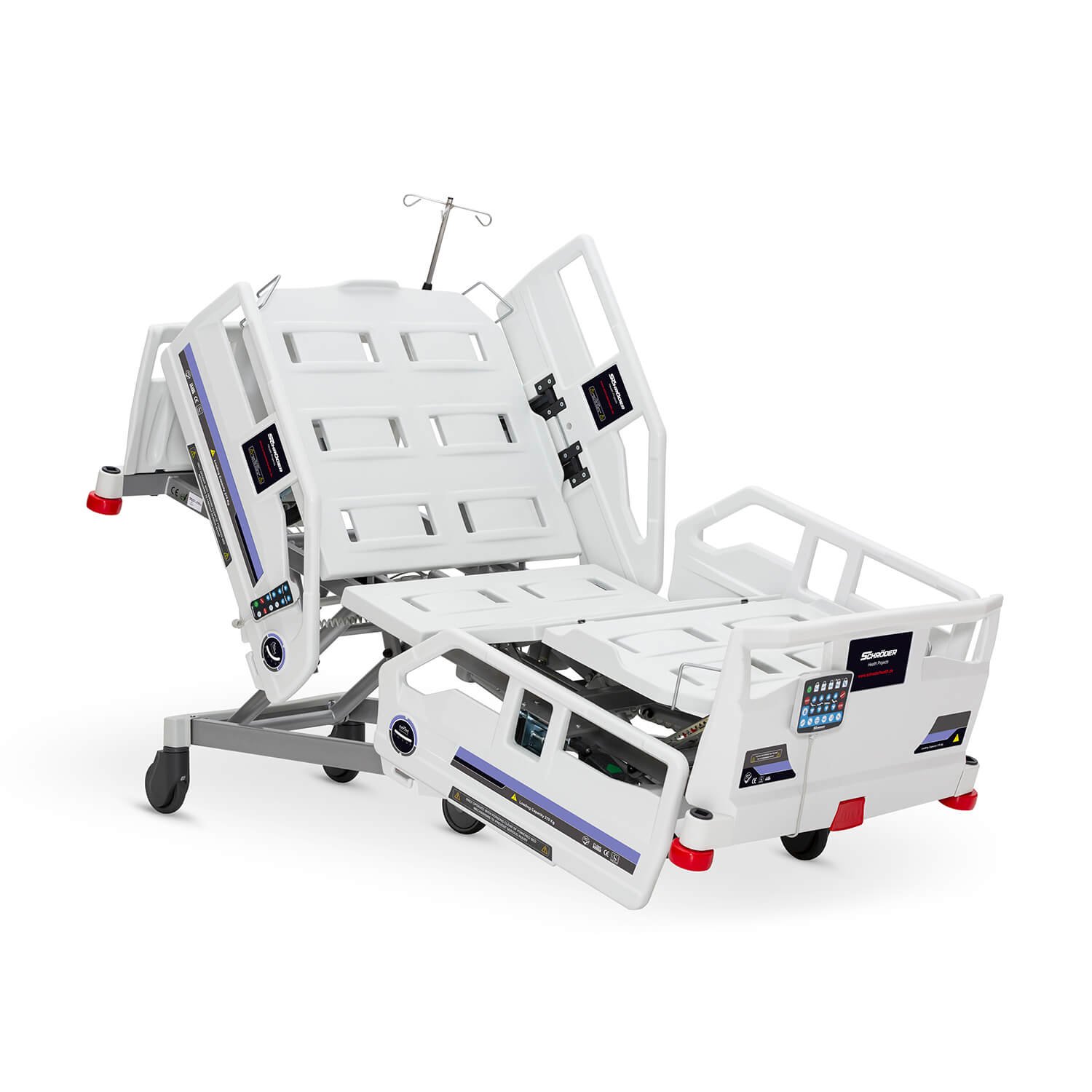

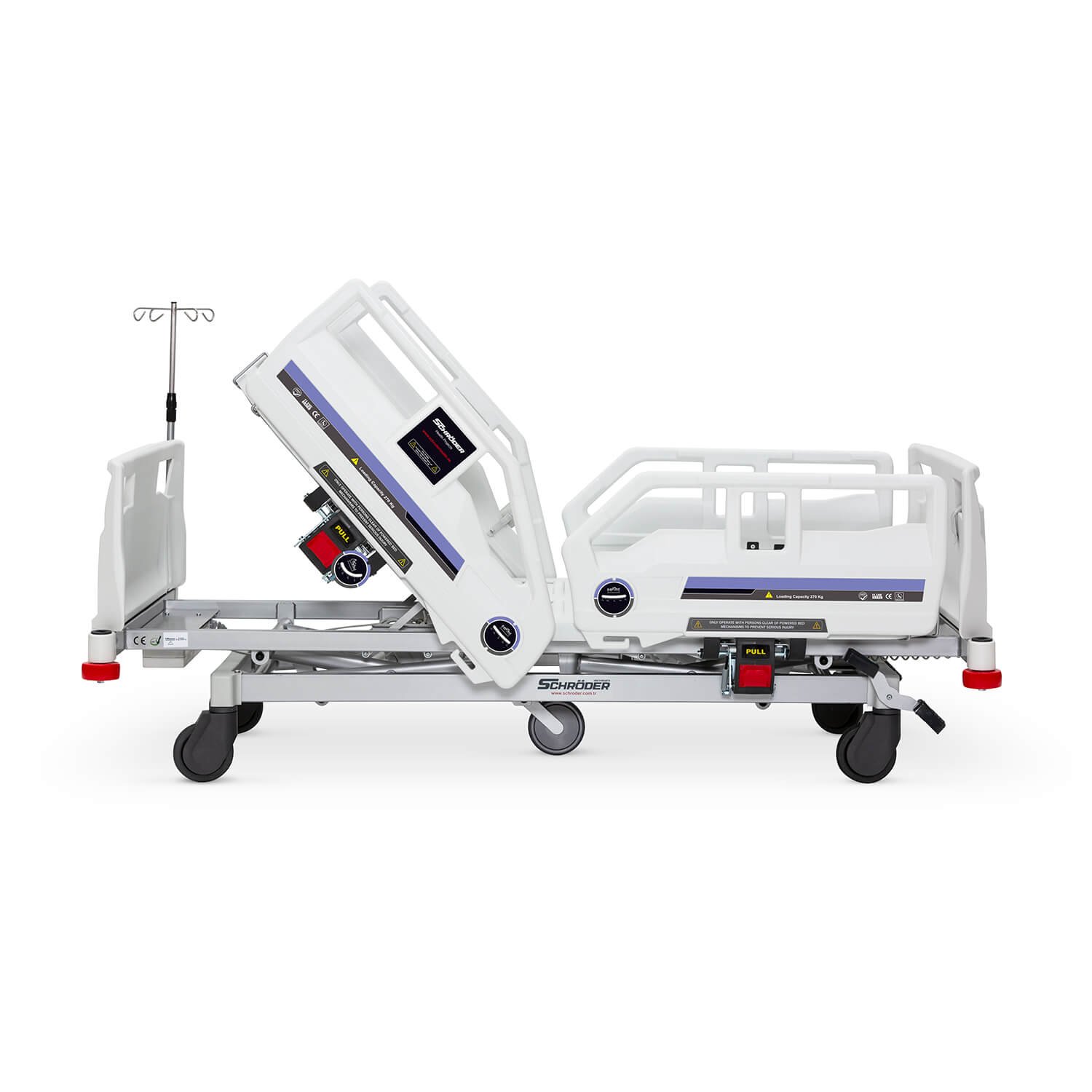

CURA 4150

BASIC POSITIONING & ADJUSTMENTS

• Height Adjustment Motors
• TR/ATR Tilt Adjustment Motors
• Backrest Adjustment Motor
• Thighrest Adjustment Motor
• Calfrest Mechanical Ratchet

MOBILIZATION

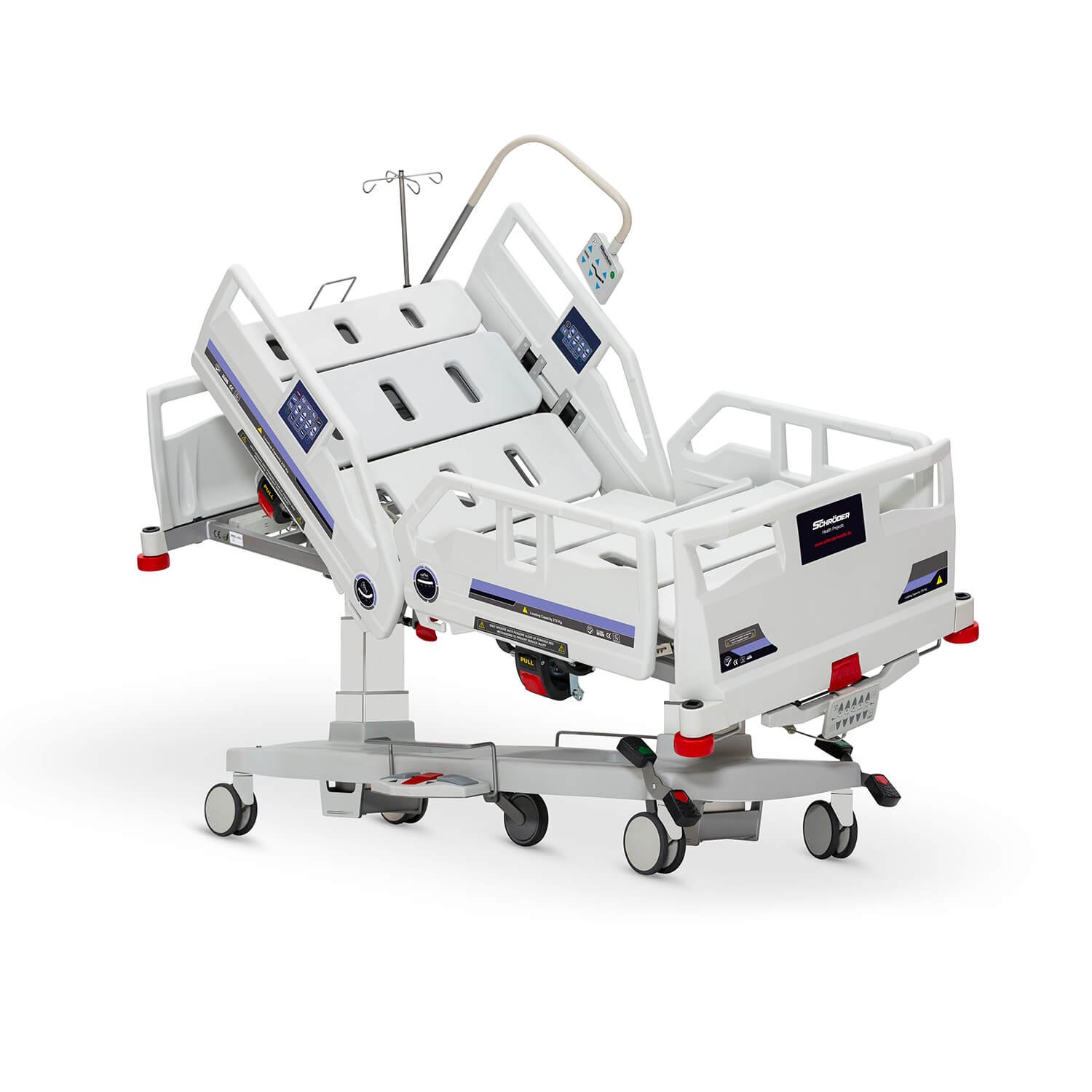

Its powered with two liner actuators and two Lifting Columns which are hi-tech electrical devices able to convert rotational motion in low voltage DC motors into linear push/pull movements. CURA 5000 is an electric bed for Intensive care units, with a mattress platform in 4 jointed sections and height adjustment performed by high load capacity telescopic columns.

PLASTIC MATTRESS PLATFORM

The 90 cm x 200 cm mattress platform of the CURA 5000 bed has been adapted to aim the highest level of comfort for the patient. The mattress platform is made of ABS plastic parts and therefore is easy to clean, disinfect and detach. Optionally offered ergonomic design double layer 4 sections platfom specifically designed ventilation channels allow air to circulate under the mattress and reduce moisture. The mattress platform 4 sections made up recyclable and sanitizable material which is PP and silver nanoparticles (Ag NPs) compounds. 4 sections are washable easy to be removed and cleaned, with round edges and integrated mattress stoppers without sharp edges.

X-RAY

X-Ray casset aplication ready on back rest addapted to be use on bed construction. The lung X-Rays can be taken without any need for the physical handling of the patient. Optionally offerable translucent backrest part to allow directly insert an X-Ray cassette if needed and ABS plastic cassette holder will be applyable.

SIDE RAILS

Electric hospital bed cura series side rails specially and ergonomic designed with integrated urine bag holder with angle adjustment of the positions. The bed hosts of fold-down 4 section safety sides made up an Antimicrobial material as the mixture of PP and nanoparticles (Ag NPs) compounds. The appropriate designe increases patient mobilization and reduce the efforts of sanitarians for easy cleaning and disinfection. The design of the sections specially design for extra safety to prevent fall risk greatly attain 42 cm height above the mattress platform and a total lateral containment surface for the patient, in compliance with the standard for hospital beds CE EN 60601-2-52. Side rails have a lateral space consumption of 4 cm, use less space and can be effortlessly lowered with one hand.

SAFE BED ENTERY AND EXIST

The excellent and ergonomic design of the CURA bed’s split side rails provide full lateral protection in all positions and all times, even the bed is articulated. This helps reduce the potential strain on the caregiver as well as the risk of falls to patients. Patients can be easily moved into the most comfortable position without compromising their safety. The side rails feature a smooth and fast self-lowering mechanism with dampening system that can be set in motion with one hand for accessing patients instantly.

CONTROLLERS

1. HAND REMOTE CONTROL
   Advanced hand control designed for high-end CURA series hospital beds. The CURA hospital bed hand control remote has up to twelve soft-touch buttons and Illuminated led indicators comes with a protection class IPX6 Washable. This control gives users optimal overview of the many adjustment options, movement patterns, and additional features, ensuring efficiency and precision when attending to patients.
2. NURSE CONTROL PENDANT

The CURA ICU bed nurse Control pendant is a compact unit with up to 24 buttons that can be used as hand control keys or lock-outs. The lock-out function can be made visible by using yellow LEDs.

The CURA bed nurse control pendant allows nursing staff to retain direct control over critical positioning functions while giving the patient a limited degree of adjustment. This high degree of selective control is vital in cases such as spinal injuries and other similar conditions.

The CURA bed nurse control pendant has a flexible “hook” which enables it to be positioned according to the nurses wishes, out of reach of the patient and serves to block the hand control functions that may be inappropriate, or even dangerous to the patient.

AUTO REGRESSION (PATIENT CONFORT)

CURA series electric hospital beds is succesfully addapted with an auto-regression system during adjustments of backrest and leg automatically shift increasing the space on the pelvic area by creating an extra space of 15 cm. This care mechanism maximize comfort during recovery with allowing degreased pressure ulcers and significantly reduced pressure on the pelvis and sacral areas to enhance breathing and to avoid continuous repositioning of the patient on the bed.

CPR

The standard future of electronic CPR adapted in all CURA series electric beds. In case of emergency, the backrest can be brought down manually through a (MANUEL CPR) quick release lever available on both sides of the bed; the lever allows the adjustment at any position of the bed, even at lowest height and both with safety sides up or down locations.

CASTORS

CURA electric bed standard avalable in ø 150 mm washable, simultaneous Wheels with the options twin castors and directional locking system. Pretty and simple design for easy cleaning and disinfection.

MINIMUM HEIGHT INDICATORS

The bed automatically stoped and indicated with light on control panels when moving to the lowest position. The height lamp on the remote is in red. When the bed is in the lowest position, the lamp turns green to reduce the risk of falling.

BRAKE OFF INDICATOR

If the brakes do not engage, it warns caregivers with an audible tone that continues until one of the brake pedals is depressed.

EASY TO READ ANGLE INDICATORS

On site angle indicator assists in positioning the patient to the desired angle of elevation.

RASTOMAT

The footrest area is manually adjustable by toothed rack aiming counter rotations of the knee.

ONE TOUCH SHOCK POSITIONING

Places the patient in a flat Trendelenburg position in an emergency.
